KingSpec SSD 240GB 256GB mSATA SSD SATA III Internal Solid State Hard Drive for Computer Laptop Desktop
 |
| KingSpec SSD 240GB 256GB mSATA SSD SATA III Internal Solid State Hard Drive for Computer Laptop Desktop |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -35% |
| Product id | 32810476298 |
| Vendor | KingSpec Official Store |
| Category | Computer & Office - Internal Storage |
Description :
KingSpec sata3 mSATA SSD for Tablet PC / Ultra books / Laptops KingSpec 256GB mSATA SSD mSATA 3 Internal Solid State Drive 6Gbs for Computer Laptop Desktop
Factor: 3*5cm
Interface: SATA
Capacity: 256GB
Average Access time: 0.2ms
Sustained Read/Write: 350~470/160~260MB/s (for reference only)
4KB Sepuential Read IOPS: 5, 217
4KB Sepuential Write IOPS: 5, 142
MTBF: 1, 000, 000hours
Operating Temperature: 0~70º C
Warranty: 3 years
Packing: standard gift box
Our products’Competitive Advantage:
1) Original brand NAND Flash
2) Fast read/write speed ,faster application load times
3) High reliability, data stability
4) Low energy consumption
5) Anti-shock, anti-dust, Noiseless, superior security
6) Shockproof, rugged design safe and high stability and reliability
1. Datasheet for KingSpec SATAIII mSATA mini-pcie module ssd for Mid/Server/ Umpc/ Motherboard/PC
| Model | MT-256 | ||||
| General | Form factor | mSATA Module | |||
| Interface | mSATA | ||||
| Performance | Capacity | 64GB | 128GB | 256GB | |||
| Sustained Read (for reference only) | 461MB/s | 470MB/S | 350~470MB/S | ||||
| Sustained Write (for reference only) | 95MB/s | 150MB/S | 160~210MB/S | ||||
| Random IOPS | |||||
| 4KB Random Read IOPS | 24000 | ||||
| 4KB Random Write IOPS | 350 | ||||
| Average Access time | 0.1ms | ||||
| Power Consumption | input Voltage | 3.3V±5% | |||
| Idle | 0.5W | ||||
| Active | 2.0W | ||||
| Reliability& Endurance | Write endurance | 8 years @100GBytes write and erase per day at 32GB | |||
| Read endurance | unlimited | ||||
| Wear-Leveling Algorithm | Dynamic and static wear-leveling | ||||
| Data Retention | 10 years at 25ºC | ||||
| MTBF | 1,000,000hours | ||||
| ECC | support NCQ,TRIM 16bits or 24bits in 1024 bytes | ||||
| Bad Block Management | Auto Bad Block Management in system | ||||
| Environment | Operating Temperature | 0~70°C | |||
| Non-operating Temperature | -40~85°C | ||||
| Shock | |||||
| Vibration | |||||
| Ambient Humidity | 5-95% | ||||
| Warranty | |||||
| Available unit | Available | NO EOL | |||
| Testing Platform | CPU: Intel® Core(TM) i5-2400 CPU @ 3.10GHz Chipset: Intel® Z68 Express Chipset Memory: Kingston KHX1600C9D3C1K2/4GX OS: Microsoft Windows 7 Professional 64-bit AHCI Driver: Intel Chipset SATA AHCI Controller 10.5.1.1001 BIOS Settings: AHCI Mode | ||||
| Testing Software | ATTO Disk Benchmark,CrystalDiskMark v3.0 ,HD Tach RW 3.0.1.0,HD Tune PRO 3.50 | ||||
| Physical Dimensions & Weight | Height(mm) | 3.5+/_0.25 | |||
| Width(mm) | 30+/_0.25 | ||||
| Length(mm) | 50.0+/_0.25 | ||||
| Weight(g) | 3.5+/_0.5 | ||||
| The read and write speed is limited to this test platform. | |||||
Compability:
MSATA SSD will fit for below notebook models:
Fujitsu LH532
Acer Aspire: M3-xxx, M5-xxx, R7, S7 (S7-391), Timeline, V5-572G-6679
Acer Iconia Tab W500, W700
Acer EC 470G
Dell alien m14x R2 / R3, M17x R4 / R5, M18X R2
Asus Eee Slate EP121
ASUS VivoBook: S400CA, S551LB
Asus Zenbook: UX21, UX
Sky barebones: P150SM, P151SM1, P157SM, W350STQ, W650SR, W230ST, W350SKQ, W355STQ, W650SH, W651SH, W651SR, W655SH, W655SR, W740SU
Dell Inspiron: 14z (5423), 15 (7537), 15z (5523), 15R SE, 17R, 17R 5720, 17R SE
Dell Latitude: 6430u, ST-LST01, XT2, XT3
Dell Precision: M4500, M4600, M4800, M6400, M6500, M6600, M6700, M6800
Dell XPS: 12 (12-9Q33), 13 (L321X), 14 (L421X), 15 (L521X), 18, One 2710
Dell Vostro: 3360, 3460, 3560
Dell E7440, E6440
Fusion Futro: S700, S900
Fusion Garage JOOJOO
Gigabyte Q1742N, U2142, U2440M, U2440N, U2442
Google CR-48 Chrome
HP ENVY: 14 Series *, 15 Series (15-3xxx), 17 Series (17-3xxx)
HP ENVY Sleekbook: 14 *, 15.6 "*
HP ENVY Spectre XT 13
HP ENVY TouchSmart: 15 Series (15-J003xx, 15-J154ca, 15t-j100, 15-j113ea), 20-d010
HP Folio: 13-1000
HP Pavilion: dm4t Series (DM4T-3xxx), dv6 Series
HP ZBook 15 Mobile Workstation
Lenovo K26, K27, K29, K47A, K47G, K49, M490s
Lenovo Essential: B590
Lenovo IdeaPad: S210, S400, U300, U310, V570, Y460, Y460P, Y470, Y470P, Y480, Y500, Y500N, Y510, Y560, Y560P, Y570, Y580, Y471A
Lenovo IdeaPad Yoga 13
Lenovo ThinkPad: L420, L430, L520, L530, T420, T420s, T430, T430i, T430s, T430si, T520, T530, T530i, W520, W530, X220, X220T, X230, X230i, X230 Tablet, X230i Tablet
Lenovo ThinkPad Edge: E220s, E320, E330, E420, E420s, E430, E430s, E520, E530 (except 530C), S430
Lenovo Yoga 2 Pro
LG Xnote: P330
MSI GE60, GE70: 2OE-014NE, 2OE-017US
MSI: Windpad 110W
Samsung: Series 7 Slate, Series 9
Samsung Chromebook Series 5
Sony VAIO: E Series, Tap 21
Toshiba Qosmio: X70, X75-A7298
Toshiba Portege: Z830, Z835, Z930
Toshiba Satellite: P70, P770
WeTab
MSATA SSD will fit for below desktop board:
Intel NUC Board: DC33217GKE, D34010WYB, D53427RKE, D54250WYB
Intel NUC Kit: DC3217IYE, D34010WYK, DC53427HYE, D54250WYK
ASRock Z87 limit players 11 / ac
ASRock Z87M overclocking equation
MSI Z87 MPOWER
MSI Z87 MPOWER MAX
MSI Z87 XPOWER
ASRock Z77E-ITX
Gigabyte GA-B75-D3V
MSI Z77IA-E53
MSATA SSD will fit for below mobile devices:
Drobo Mini Portable Storage Array
Microsoft Surface RT Tablet
Microsoft Surface Pro Tablet
Microsoft Surface Pro 2 Tablet
Microsoft Surface Pro 3 Tablet

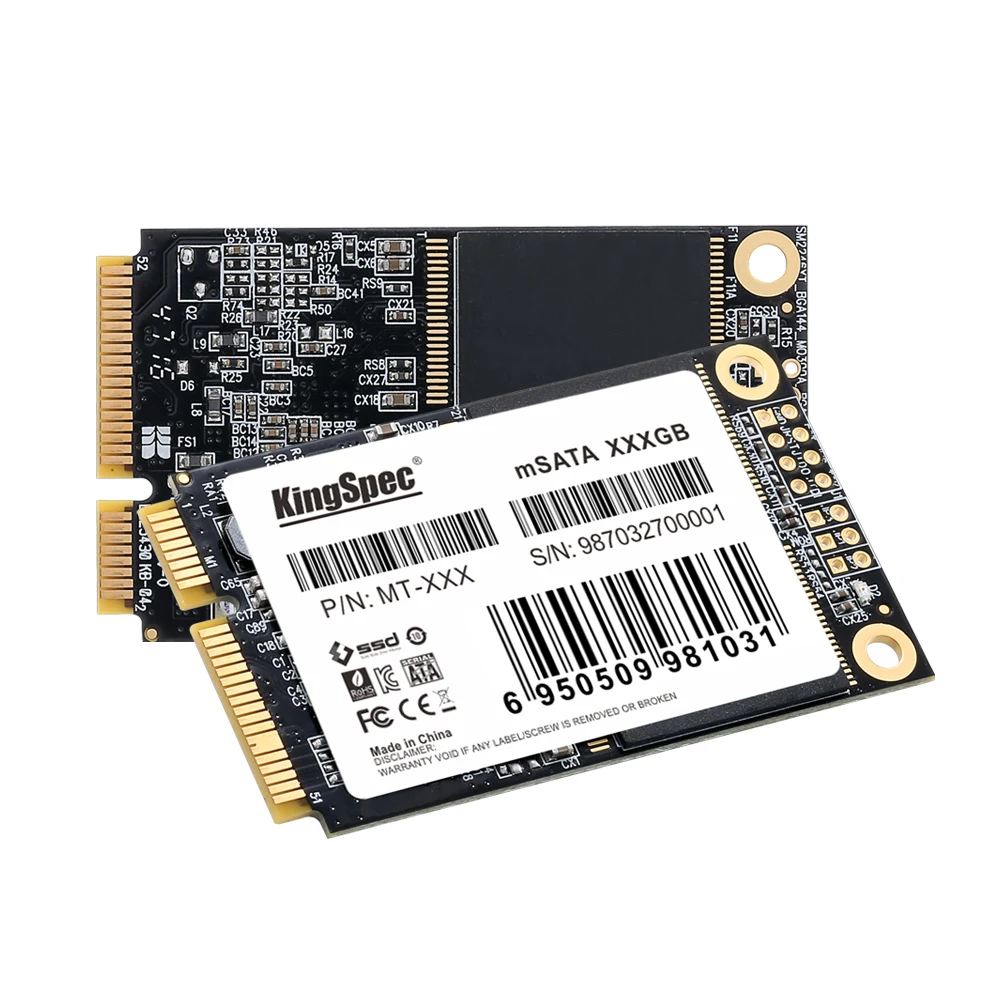

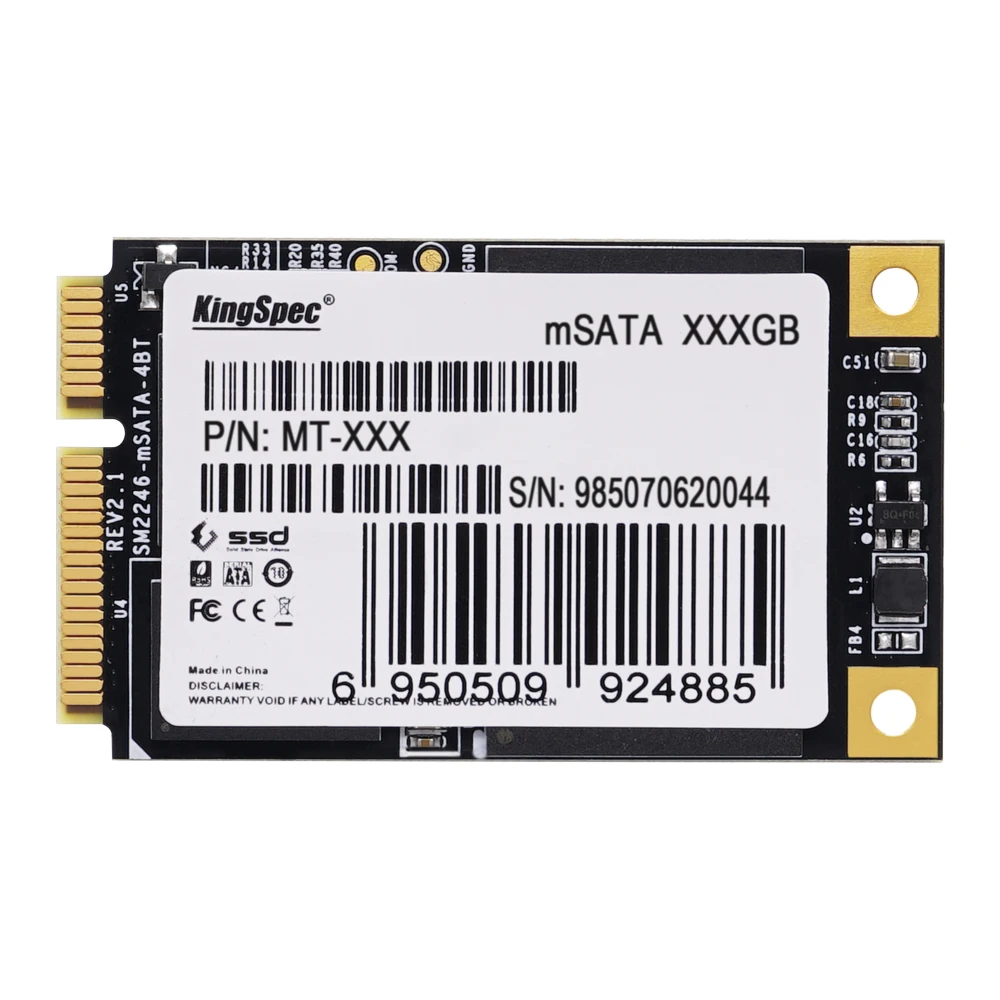

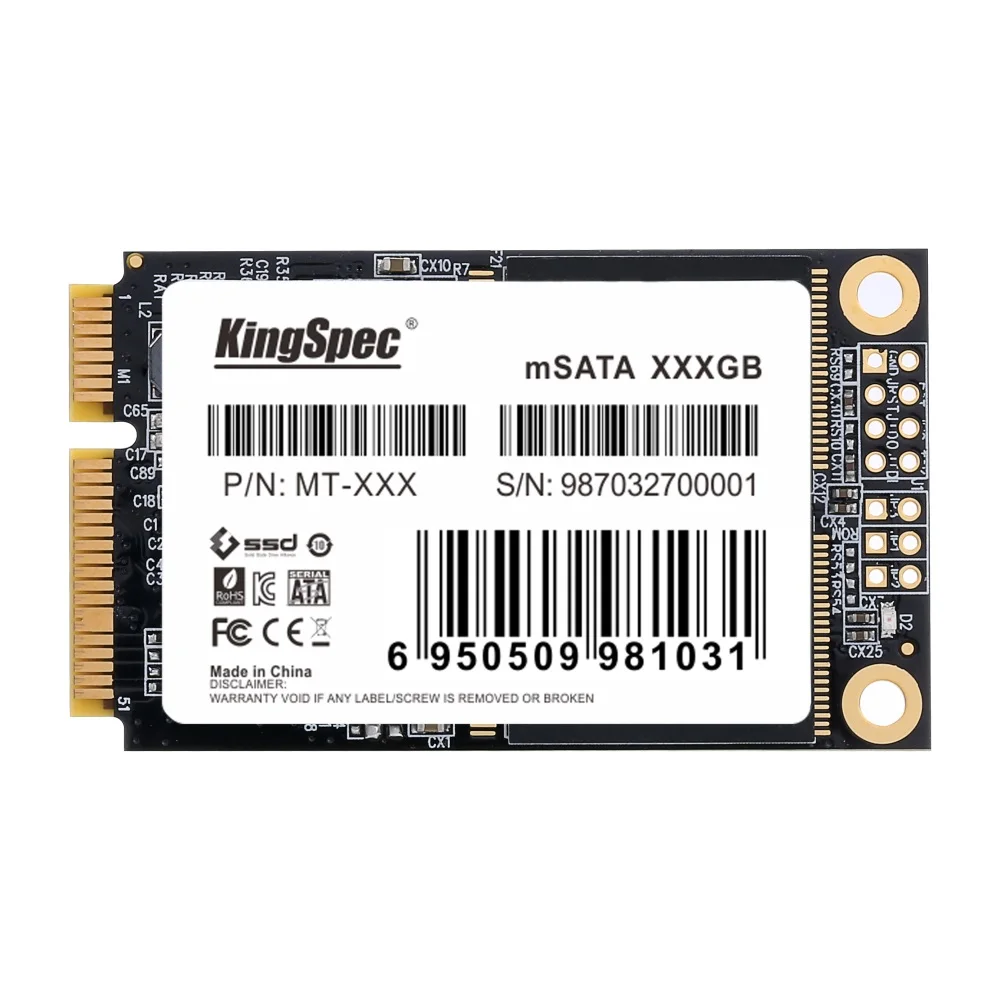

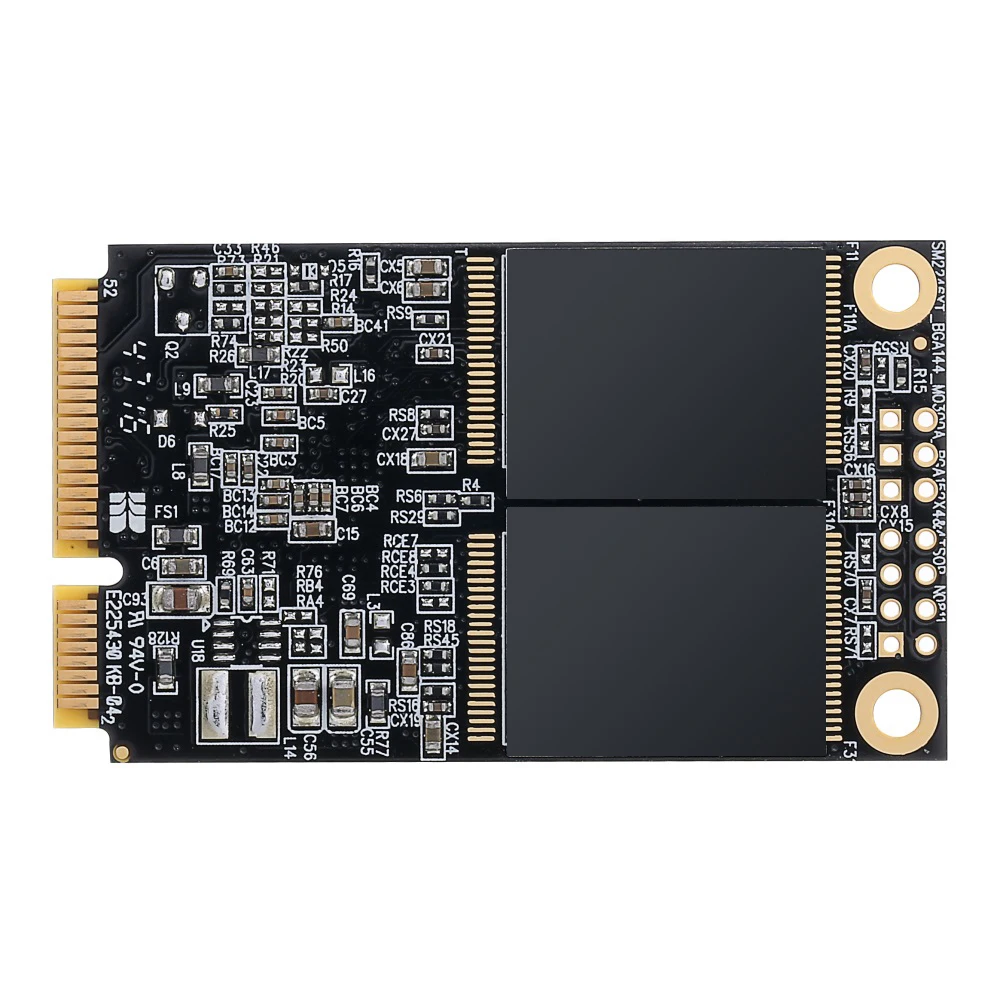

2. Product picture (for reference only):
Kingspec mSATA SSD Solid State Drive FOR Tablet Free Shipping mSATA SSD Mini SATA Solid State Drives 240G SSD For Desktop Laptop Server Read 470 MB/S, Sequential wirite 160 MB/S (for reference only) 240G mSATA SSD Mini SATA Solid State Drive Module For Desktop Laptop Server ( ACSC2M240mSA )
Check This Video Reviews We bought a cheap SSD from Ali Express..
Check This Video Reviews KingSpec M.2 2242 512GB REVIEW - It's Garbage
Best Price Comparison With KingSpec SSD 240GB 256GB mSATA SSD SATA III Internal Solid State Hard Drive for Computer Laptop Desktop

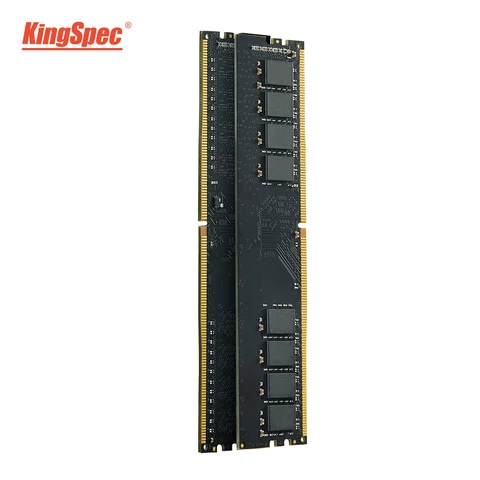

KingSpec DDR3 Ram Memory DDR3 4GB 8GB 1600 Mhz For Desktop PC DDR3 memoria ram ddr3 8gb 4gb
Buy Now On Aliexpress
KingSpec mSATA SSD 1TB 2TB HDD Mini SATA SSD For computer Internal Solid State hard Drive for hp laptop SSD Disk mSATA Hard DIsk
Buy Now On Aliexpress

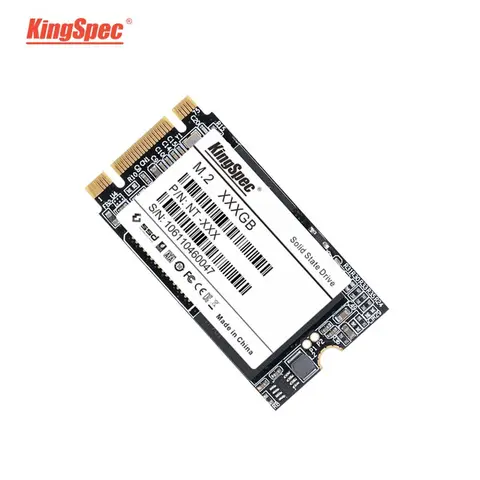

KingSpec M.2 SSD 60GB 120GB 240 GB SSD M2 SATA NGFF M.2 2242 64gb 128gb 256gb HDD For Computer Notebook Smartbook 133t
Buy Now On Aliexpress
KingSpec 1TB 2.5 sata III 6GB/S SATA3 SSD 120GB 240GB 480GB SSD Internal Solid State Hard Disk HDD hard drive for computer
Buy Now On Aliexpress

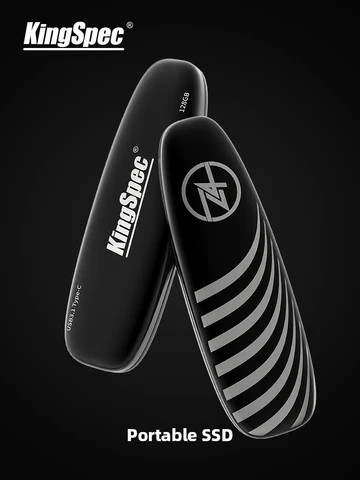

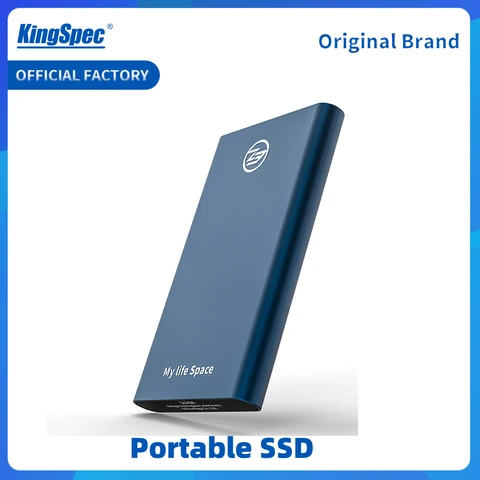

KingSpec External SSD hard drive 1TB 120GB 240GB 500GB Portable SSD External hard drive for laptop PC Phone ssd usb 3.0 3.1
Buy Now On Aliexpress

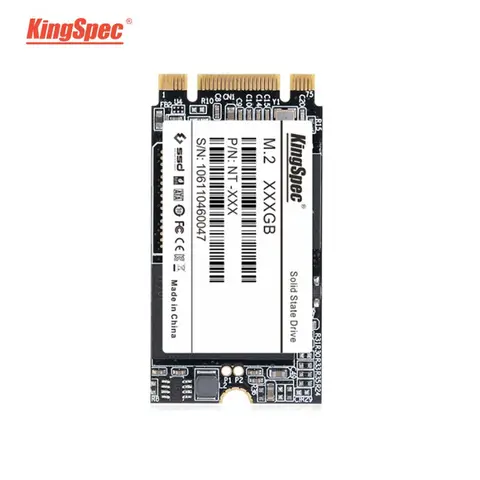

KingSpec m.2 ssd 2242 120GB 480GB 500GB M.2 SATA NGFF Drive M2 ssd Internal Solid hard disk SSD For Jumper ezbook 3 pro
Buy Now On Aliexpress

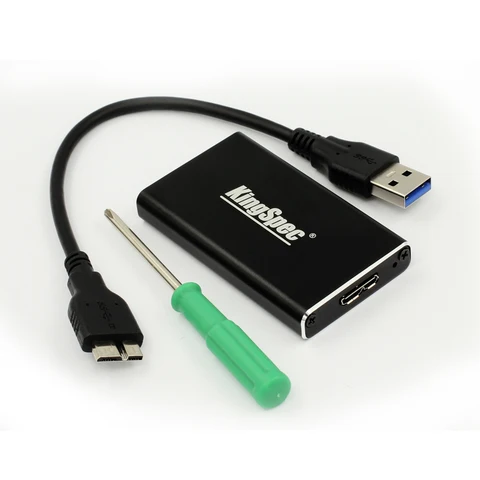

KingSpec mSATA To USB 3.0 SSD Enclosure External HD Hard Drive Disk Box Storage Case Adapter Support 30mm*50mm mSATA Drive SSD
